Continental’s Intelligent Tyre
Step into the future with Digital Tyre Monitoring
Continental's intelligent tyre comes complete with a pre-mounted tyre sensor, which constantly monitors the pressure and temperature of the tyre and transmits the information to any of our receiver systems.
Take a step into the future of tyre management with Continental's intelligent tyre.
- Accurate tyre pressure and temperature readings to prevent tyre damage and breakdowns
- Sensor lifetime is 5 years or 500,000 kms* with 2 years warranty to minimize disruptions to your tyre program
- Provides true tyre casing temperature, allowing preventive actions that make your tyre last longer
- Avoids valve damage and air leaks by mounting on the inner liner of the tyre
Types of Commercial Tyre Sensors
- Tyre Mounted
- Valve-Mounted
- Wheel-Mounted

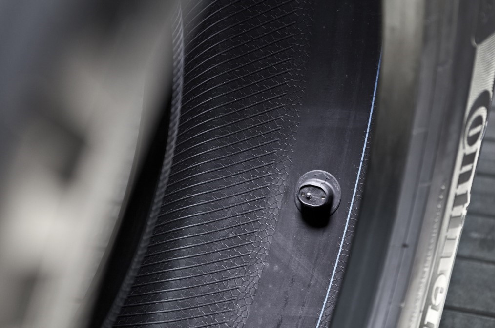

A tyre-mounted sensor is attached to the inner liner of the tyre. This position delivers significant benefits:
- Protects the sensor from damage from curbing, road debris, etc.
- Avoids theft
- Eliminates the need for a metal clamp
- Will not be damaged during tyre mounting or dismounting
- Delivers true tyre pressure data via measurement, rather than calculating via an algorithm
- Delivers true tyre casing temperature, without influence of heat from braking system
Continental tyres can be ordered as intelligent tyres directly from the factory, pre-equipped with tyre-mounted sensors. The sensors can also be retrofitted into existing dismounted tyres. All of Continental’s digital tyre monitoring solutions rely on tyre-mounted sensors, due to the inherent benefits of this mounting position.
Valve-mounted sensors are often inexpensive and easy to install, but fleets may find the sensors can be damaged by curbing, and in some cases even see them causing tyre failure if the valve stem is torn during the event.
It is important to note that tyre temperature, one of the key measures to avoid permanent tyre damage, is not measured by valve-mounted systems, but rather calculated via an algorithm, which in some cases can lead to inaccurate results.
Wheel-mounted, also called rim-mounted, sensors are attached to the wheel using a metal clamp. While protected from damage caused by curbing, this type of sensor may be damaged during the tyre mounting or dismounting process.
In addition, the metal band attaching the sensor to the rim receives heat as the wheel turns, causing expansion and contraction of the clamp. After a period of time, the clamp may loosen and allow the sensor to spin around the rim, causing damage.
In terms of measuring temperature, the sensor can be influenced by heat from the vehicle’s braking system, in which case it would not deliver accurate tyre temperature data.
Benefits of TPMS
Tyre pressure monitoring systems (TPMS) from Continental deliver operational benefits to your fleet, such as reducing downtime and saving money.
On average, almost 1 in every 2 tyres in a commercial fleet are either underinflated or overinflated. Digital tyre monitoring solutions will help you:
- Minimize Irregular Tyre Wear
- Save Fuel
- Save Labor & Maintenance Costs
- Reduce Roadside Breakdowns
- Improve Safety
Ordering Intelligent Tyres
Any tyre that Continental offers in Australia can be ordered as an intelligent tyre.
TPMS Solutions
Continental offers multiple solutions for tyre pressure and temperature monitoring. Since the same tyre sensor forms the backbone of all our solutions, they can be combined in a myriad of ways to best fit the needs of your fleet.

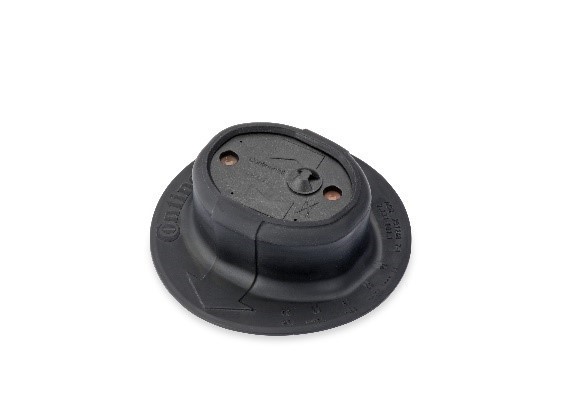

Specs
- Integrated battery-powered tyre sensor with radio frequency transmitter
- Sends data every 2 minutes
- One tyre sensor per running wheel
- Mounted on inner liner of the tyre
- Pressure operating range: 0 to 174 psi
- Recommended pressure: 26 psi to 174psi
- Temperature operating range: -40°C to +120°C
