# Digital Solutions
ContiConnect Pressure Check
An effective solution for the transport industry to achieve lowest overall driving cost.
Continuous tire-pressure monitoring drives down overall operating costs.
The ContiConnect Pressure Check system continuously measures the pressure and temperature of all tires on your vehicle - even when you are driving. This helps to save fuel and increase mileage. It also significantly reduces the risk of tire failure, whilst maintaining the value of the casing, and thus the retreadability.
Thanks to the new ContiConnect Pressure Check system, you can now actively reduce operating costs by up to 1,500 € per vehicle a year* while improving driver and vehicle safety.
* savings based on 4 x 2 tractor with three-axle semi-trailer driving 140,000 km per year (assumed price of diesel: 1 € / l), including estimated costs (approx: 700 €) for one tire-related breakdown.
- Easy
ContiConnect Pressure Check is quick and easy to install. Mounting inside the tire guarantees high data accuracy. ContiConnect Pressure Check is compatible with all tire brands. - Economical
Driving with the correct air pressure can lead to significant fuel savings, increased mileage and maintain the value of the tire casing, thus making your fleet more economical.
- Reliable and safe
The ContiConnect Pressure Check system helps prevent tire-related breakdowns that can lead to costly downtime, late fines, negative publicity, danger to other road users and loss of sales or profits.
- Eco-friendly
Running the correct inflation pressure lowers fuel consumption, reduces tire wear, decreases CO2 emissions and consequently protects the environment.
Automatic Trailer Learning makes it simple to exchange trailers without the need of additional system configuration.

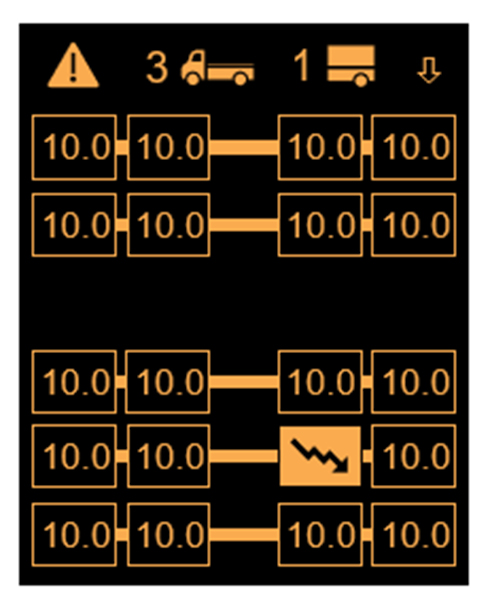

Surrounding Observer
Until recognized by ATL, all unknown sensors with very low pressure in the vicinity of the CCU will be reported to the driver.
The system covers almost all combinations of fitment, from single axle trailer to six axle vehicle configurations with a maximum of 32 tires. It is suitable for tractors, trailers, tractor/trailer combinations, as well as buses and coaches
| 17,5" | 205/75 R 17.5 | 245/75 R 17.5 | 8 R 17.5 |
|---|---|---|---|
| 215/75 R 17.5 | 245/70 R 17.5 | 8.5 R 17.5 | |
| 225/75 R 17.5 | 205/65 R 17.5 | 9.5 R 17.5 | |
| 235/75 R 17.5 | 10 R 17.5 | ||
| 245/75 R 17.5 | |||
| 19,5" | 225/70 R 19.5 | 305/70 R 19.5 | 385/50 R 19.5 |
| 245/70 R 19.5 | 385/65 R 19.5 | 435/50 R 19.5 | |
| 265/70 R 19.5 | 255/60 R 19.5 | 445/45 R 19.5 | |
| 285/70 R 19.5 | 385/55 R 19.5 | ||
| 20" | 10.00 R 20 TL | 11.00 R 20 TL | 12.00 R 20 TL |
| 14.00 R 20 TL | |||
| 365/85 R 20 TL | 395/85 R 20 TL | 365/80 R 20 TL | |
| 22,5" | 275/80 R 22.5 | 425/65 R 22.5 | 495/45 R 22.5 |
| 295/80 R 22.5 | 445/65 R 22.5 | 455/40 R 22.5 | |
| 315/80 R 22.5 | 295/60 R 22.5 | 9 R 22.5 | |
| 245/75 R 22.5 | 305/60 R 22.5 | 10 R 22.5 | |
| 265/75 R 22.5 | 315/60 R 22.5 | 11 R 22.5 | |
| 295/75 R 22.5 | 295/55 R 22.5 | 12 R 22.5 | |
| 255/70 R 22.5 | 385/55 R 22.5 | 13 R 22.5 | |
275/70 R 22.5 | 455/55 R 22.5 | ||
| 305/70 R 22.5 | 355/50 R 22.5 | ||
| 315/70 R 22.5 | 445/50 R 22.5 | ||
| 365/70 R 22.5 | 315/45 R 22.5 | ||
| 385/65 R 22.5 | 455/45 R 22.5 | ||
| 24" | 325/95 R 24 | 12.00 R 24 TL | |
| 24,5" | 11 R 24.5 | 285/75 R 24.5 | |
| 12 R 24.5 | 305/75 R 24.5 | ||
| 25" | 14.00 R 25 | 16.00 R 25 |
Components

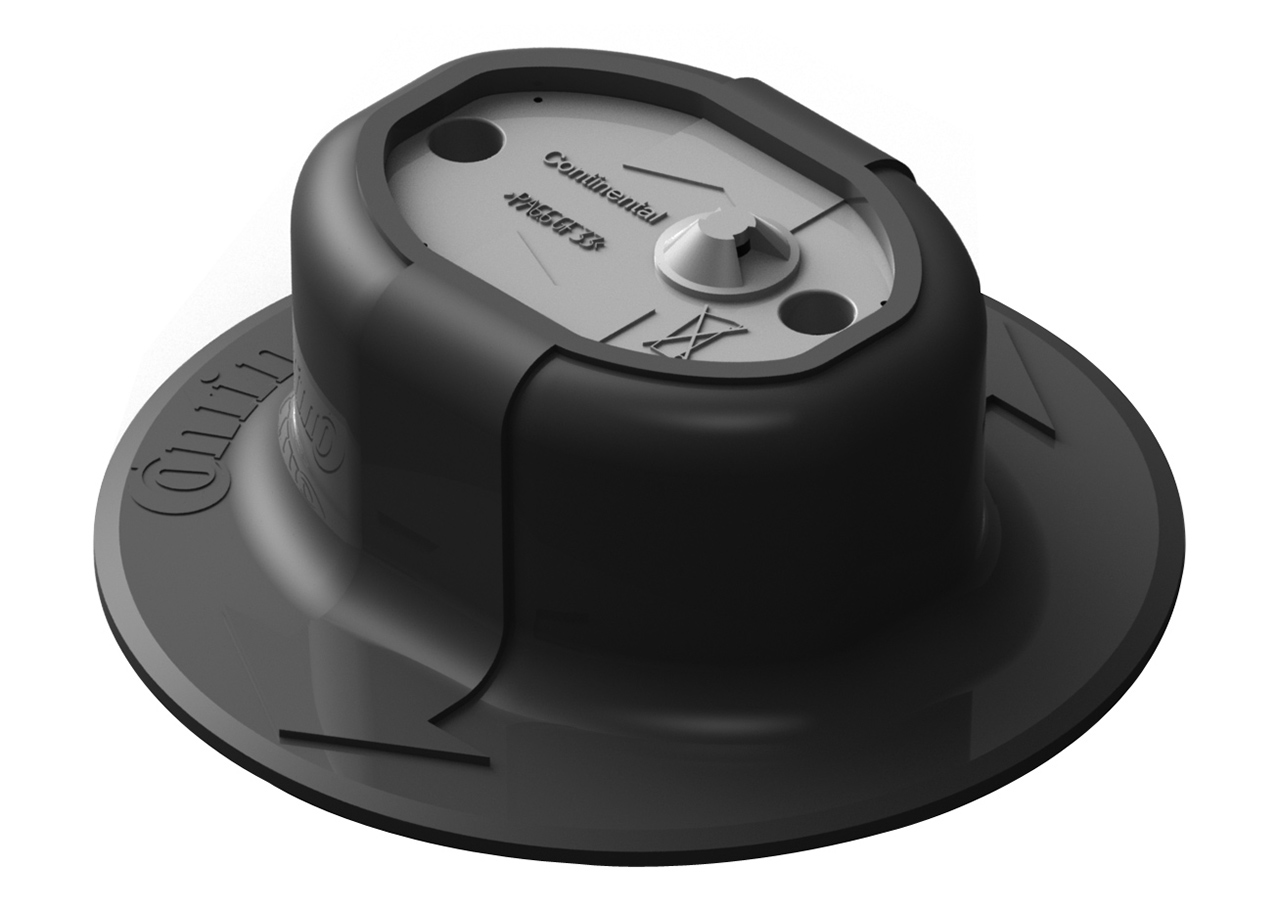

All tire sensors are mounted on the tire inner liner inside a rubber housing (tire sensor container) and continuously measure the tire pressure and temperature.

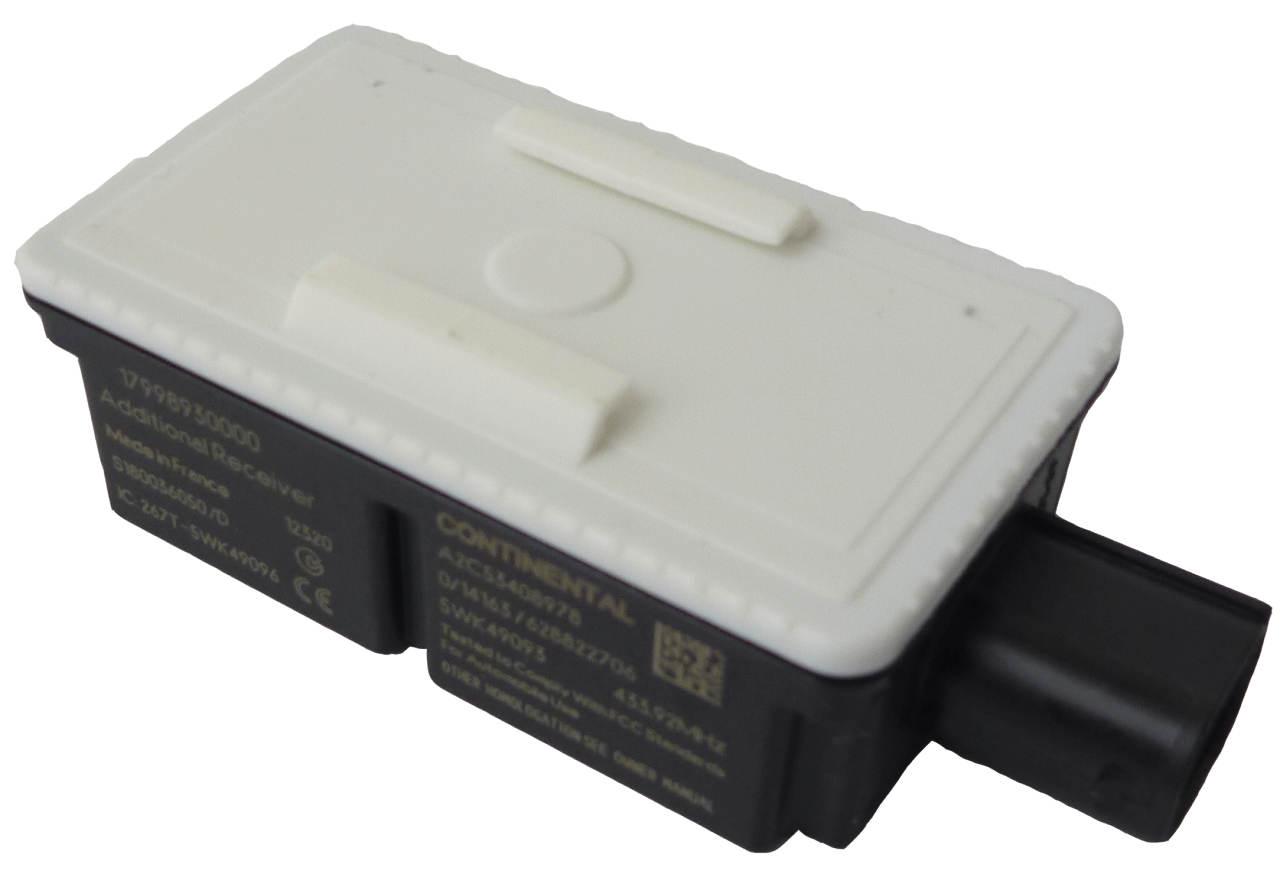

The additional receiver can be used to receive sensor signals in challenging radio frequency conditions.

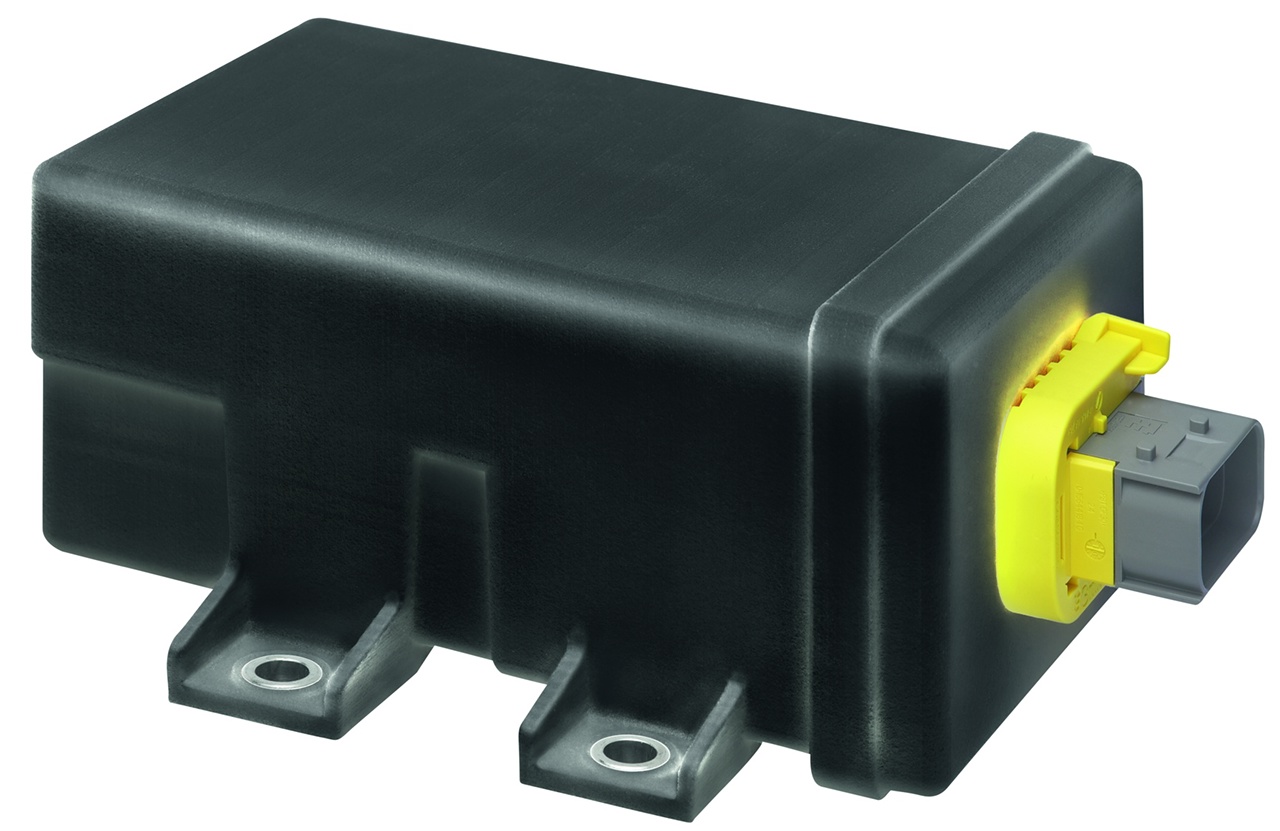

The Central Control Unit (CCU) receives tire sensor signals directly or via the additional receiver, evaluates the data and provides the status of all tires to the display or the telematic systems.
Fixed inside the cab, the display shows the tire pressures and temperatures and warns the driver in the event of pressure loss.
Telematics integration
“Seamless integration of the ContiConnect Pressure Check data into the Astrata solution continues to allow us to enable safe, sustainable and cost effective Transport and Logistics in a reliable, simple and affordable way.” - Mark Warner, Managing Director Astrata Europe..
frameLOGIC is a company which provides IT solutions in areas of fleet and mobile workforce management.
"KomTeS Chrudim s.r.o. deals with monitoring vehicles via GPS. We offer vehicle tracking, real-time measurement of fuel consumption and creation of electronic book of rides, monitoring activities, vehicles, communications with Garmin navigation, the creation of electronic queries, reading and evaluating data from the tachograph (ERTA), reading data from the CAN bus, optimize distribution routes, monitoring containers and trailers, evaluation style and economy driving."
Cost-effective solutions from the telematics serial award winner.
"Combining the ContiConnect Pressure Check information with MiX's rich, actionable telematics intelligence unlocks substantial safety benefits, operational savings and peace-of-mind for your Transport operation." - Steve Coffin, Marketing & Operations Director, MiX Telematics Europe.
Ruptela develops hardware, firmware and software products for GPS tracking and provides transport telematic solutions. Ruptela hardware is fully integrated with ContiConnect Pressure Check to provide even more value for the user.
“Precise ContiConnect Pressure Check data reporting helps to reduce fleet management costs and enables safe and effective operations management” – Yakup Küçük, Seyir Mobil General Manager.
Continental's ContiConnect Pressure Check is an ideal complement for our telematic system.
“One of the latest additions to the Teltonika solutions portfolio is ContiConnect Pressure Check™ support. The system greatly extends tire exploitation times by constantly monitoring tire pressure and temperature. We are happy to collaborate with market leaders like Continental to provide best value for our customers.” – Aleksandr Krupovič, Chief of Operational Marketing, Teltonika.
ITBinder is the Austrian expert in fleet management – since 1996. We are your leading partner for the digitization of your fleet and your employee payroll. As a reliable partner in the area of fleet management, -administration and -optimization, we help companies to save money, gain time and increase security towards authorities. Benefit from the advantage of MTrack by ITBinder.
