Conti HDR 5

19.5" Regional Drive for Over-the-Highway

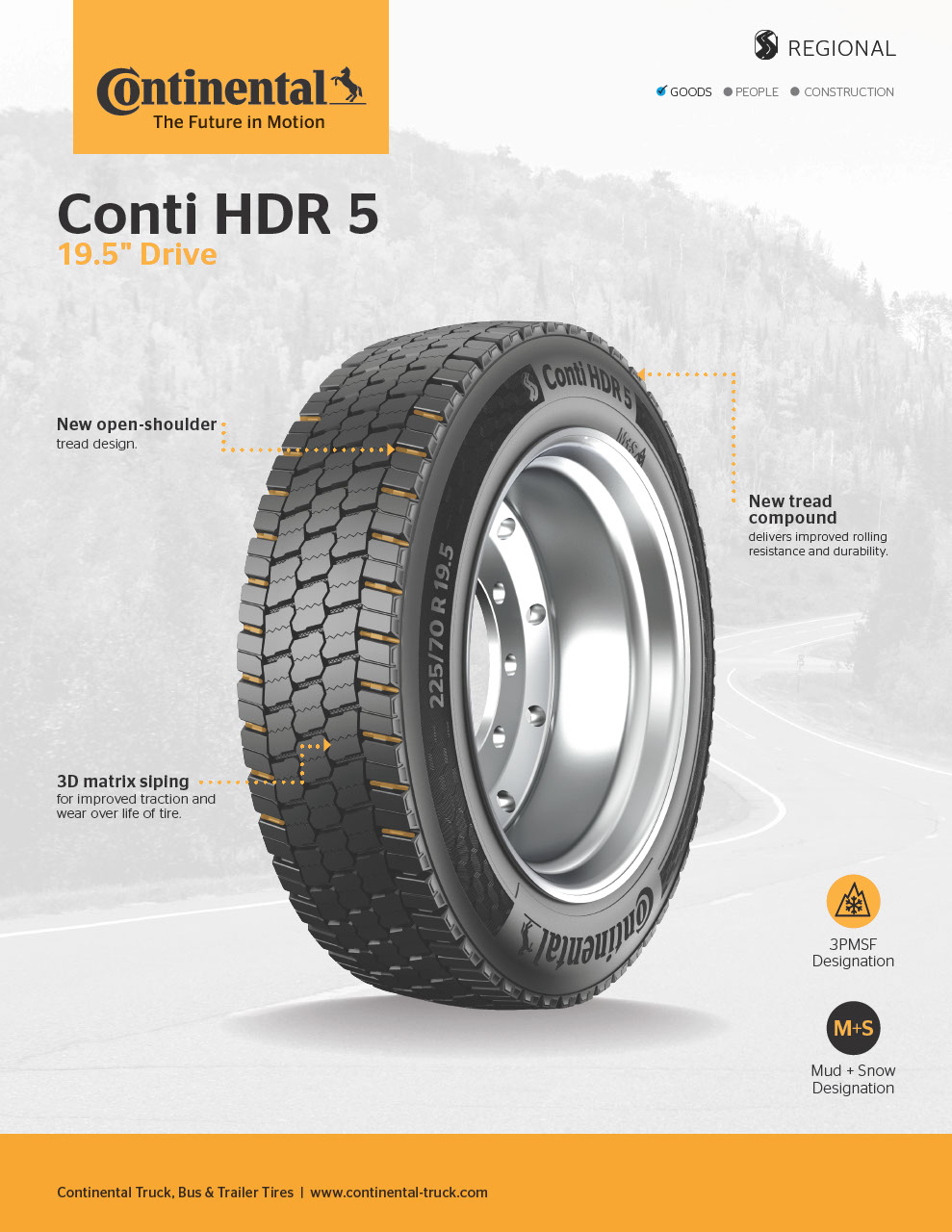

The Conti HDR 5 19.5 drive tire delivers ultimate flexibility in regional applications with increased focus on mileage, efficiency and handling. Designed with a new tread compound to provide higher durability and fuel efficiency for utility and delivery fleets, the Conti HDR 5 19.5 pattern performs well against curbing and scrubbing with high cut resistance over the lifetime of the tire. Full-width siping and open shoulder design improves traction and handling, contributing to its 3PMSF and M+S rating. Designed with retreadability in mind, the Conti HDR 5 19.5 casing features full width belts that extend past the groove bottoms and pattern stiffness provides excellent lateral stability which reduces squirm and delivers even tire wear.



Features & Benefits


Improved Tread Durability

  • New tread compound for improved rolling resistance and tread durability

High Stability

  • New open shoulder design with 16/32" tread pattern minimizes squirm, delivering excellent lateral stability and improved mileage

Optimized Traction

  • 3D Matrix Siping for improved traction and wear over life of tire

All-Weather Performance

  • Features Three Peak Mountain Snowflake (3PMSF) and Mud + Snow (M+S) designations




Vocations


Commercial Utility Trucks

  • Fleets, trucks and drivers responsible for hauling of materials or equipment in the on/off-road application
  • Utility trucks typically operate on short to intermediate runs on paved, gravel, and on/off-road surfaces
  • Tires exposed to low-to-high abrasion caused by aggressive surfaces and increased lateral scrub, twisting, turning, and curbing



Product Range Conti HDR 5

Article NumberTire SizeLoad/Speed IndexRim Diameter (in)Static Loaded Radius (in)Overall Inflated Diameter (in)Overall Inflated Width (in)Loaded Section Width (in)Minimum Dual Spacing (in)Revs Per MileTire Weight (lb)E2_3PMSF_labelApproved Rim(s)Load RangeMax Loaded Inflation-Dual (lb, psi)Max Loaded Inflation-Single (lb, psi)Max Speed (mph)Tread Depth (32nds)
05223820000225/70 R 19.5128/126N19.515.132.08.69.310.0646616.00, 6.75Load Range G3750/1103970/1108716
05225820000225/70 R 19.5130/128N19.515.132.08.69.310.064762.56.75Load Range H3970, 1204190, 1208716
225/70 R 19.5

Article Number

05223820000

Tire Size

225/70 R 19.5

Load/Speed Index

128/126N

Rim Diameter (in)

19.5

Static Loaded Radius (in)

15.1

Overall Inflated Diameter (in)

32.0

Overall Inflated Width (in)

8.6

Loaded Section Width (in)

9.3

Minimum Dual Spacing (in)

10.0

Revs Per Mile

646

Tire Weight (lb)

61

Approved Rim(s)

6.00, 6.75

Load Range

Load Range G

Max Loaded Inflation-Dual (lb, psi)

3750/110

maxLoadAtInflationDualPsi_label

Max Loaded Inflation-Single (lb, psi)

3970/110

maxLoadAtInflationSinglePsi_label

Max Speed (mph)

87

Tread Depth (32nds)

16

Intelligent Tire

Select

Article Number

05225820000

Tire Size

225/70 R 19.5

Load/Speed Index

130/128N

Rim Diameter (in)

19.5

Static Loaded Radius (in)

15.1

Overall Inflated Diameter (in)

32.0

Overall Inflated Width (in)

8.6

Loaded Section Width (in)

9.3

Minimum Dual Spacing (in)

10.0

Revs Per Mile

647

Tire Weight (lb)

62.5

Approved Rim(s)

6.75

Load Range

Load Range H

Max Loaded Inflation-Dual (lb, psi)

3970, 120

maxLoadAtInflationDualPsi_label

Max Loaded Inflation-Single (lb, psi)

4190, 120

maxLoadAtInflationSinglePsi_label

Max Speed (mph)

87

Tread Depth (32nds)

16

Intelligent Tire

Select



Take Your Tires to the Next Level

Smart Tire Conti EfficientPro HD 5


Downloads

Conti HDR 5 19.5" Sell Sheet

Conti HDR 5 19.5" Sell Sheet

pdf 7 MB Download

ContiTread HDR 5 19.5" Sell Sheet

ContiTread HDR 5 19.5" Sell Sheet

pdf 2 MB Download

Truck Tire Product Data Guide

Truck Tire Product Data Guide

pdf 57 MB Download

ContiTread Product Data Guide

ContiTread Product Data Guide

pdf 18 MB Download
